ATEN PS/2, USB, VGA, 17" TFT-LCD, 1280 x 1024px @ 75Hz, 1-255s, 13.47kg

ATEN CL5708M. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LCD, Display diagonal: 43.2 cm (17"). Power source: AC, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz

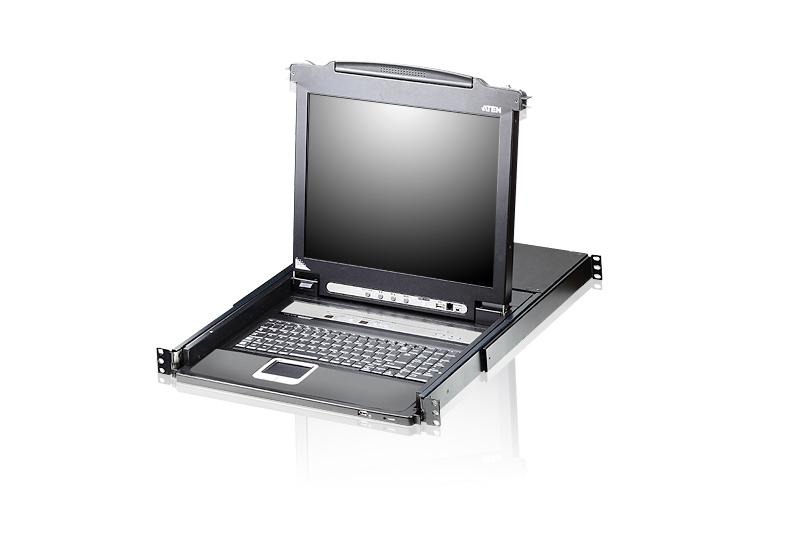

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features:
-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
-Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
-Available with or without Fingerprint Identification Reader**
-Space saving technology - up to two consoles (one bus) control up to 8 computers
-Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
-Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
-LCD module USB port allows each computer to access USB peripherals*
-LCD module rotates up to 115 degrees for a more comfortable viewing angle
-Multiplatform support – Windows, Linux, Mac, and Sun
-Supports multimedia USB keyboards for PC, Mac and Sun
-Auto PS/2 and USB interface detection
-Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
-Supports external USB mouse
-Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
-No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
-Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
-Port names automatically reconfigured when station sequence is changed
-Two level password security - only authorized users can view and control computers
-Supports one administrator and four user accounts with separate profiles
-Auto Scan mode enables continuous monitoring of user-selected computers
-Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
-Hot pluggable - add or remove computers without having to power down the switch
-Beeper on/off via hotkey and OSD
-Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Package Contents
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x User Instructions
